Privacy-Preserving Computer Vision with Homomorphic Encryption


Stanley Black and Decker Seminar

Vishnu Boddeti

June 3, 2021

VishnuBoddeti

Computer Vision Today


Image Classification


Video Recognition
Object Detection

Instance Segmentation
Semantic Segmentation

Medical Image Classification

Key Driver

Dark Data

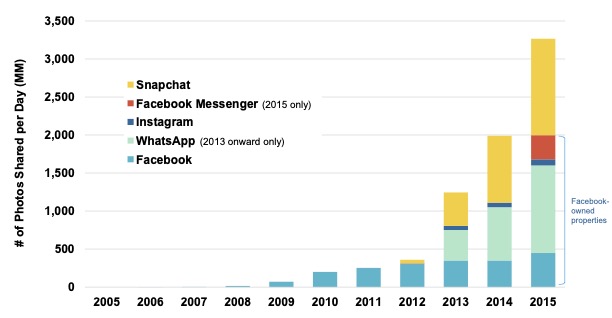

    • About 3.5 billion photos are shared publicly.
    • Conservatively, $2\times$-$3\times$ are not shared publicly.
    • Sensitive data: medical images, surveillance images.
    • Private learning:
      • enables free and open sharing
      • build better computer vision models

Why Privacy in Computer Vision

...consent should be given for all purposes...
"The Secretive Company That Might End Privacy as We Know It"

Misleading Claims

Privacy Preserving Computer Vision


Mechanism: machine learning on encrypted data

Encryption: The Holy Grail?

  • Data encryption is an attractive option
    • protects user's privacy
    • enables free and open sharing
    • mitigate legal and ethical issues


  • Encryption scheme needs to allow computations directly on the encrypted data.
    • Solution: Homomorphic Encrpytion

What is Homomorphic Encryption?

  • Encryption that allows computations on ciphertext.
    • Partially Homomorphic Encryption: allows homomorphic additions or multiplications
    • Somewhat Homomorphic Encryption: allows limited number of homomorphic additions and multiplications
    • Fully Homomorphic Encryption: additions and multiplications

Key Idea of Homomorphic Encryption

Ring Learning with Errors
op plaintext ciphertext
$x$ $(x + e_1) \mbox{ mod } t$
$y$ $(y + e_2) \mbox{ mod } t$
$+$ $x+y$ $(x+y + e_3') \mbox{ mod } t$
$\times$ $x\times y$ $(x\times y + e_4'') \mbox{ mod } t$

Machine Learning and Homomorphic Encryption

  • Main Challenges:
    • Homomorphic Encryption:
      • Supports only basic arithmetic operations (additions, subtractions, multiplications and divisions)
      • Each basic operation is computationally expensive.
    • Machine Learning:
      • Requires complex mathematical operations, including non-linear operations.
      • Computationally challenging in it's own right (big-data, large models).

Today's Agenda

  • Leverage the advantages of ML and HE while overcoming their challenges.
    • Redesign ML algorithms with constraints of HE in mind.
      • Privacy-Preserving Visual Learning Using Doubly Permuted Homomorphic Encryption, ICCV 2017
    • Redesign HE algorithms with constraints of ML in mind.
      • Secure Face Matching Using Fully Homomorphic Encryption, BTAS 2018
      • HERS: Homomorphically Encrypted Representation Search, Arxiv 2020

Federated Learning with Homomorphic Encryption

Learning from Private Data: Federated Learning

  • Distributed learning of parameters from private data.
  • Clients download current global model $\bar{\mathbf{w}_t}$.
  • Client updates model from local data.
  • Aggregator updates global model
  • Yonetani et. al., "Privacy-Preserving Visual Learning Using Doubly Permuted Homomorphic Encryption", ICCV 2017

Information Leakage from Gradients

See through Gradients: Image Batch Recovery via GradInversion, CVPR 2021

Private Learning: Differentially Private SGD

  • Differential Privacy [Dwork et.al. 2006]
    • Add noise to gradients to prevent reconstruction.
    • Limitation: Trade-off accuracy for privacy

Private Learning: Homomorphic Encryption

  • Paillier Encryption: only allows addition of integers
    • Encryption Key $m$
    • Base $g$
    • random $r \in \{0,\dots,m-1\}$
    • Ciphertext of $x$: $\xi(x) = g^xr^m \mod m^2$
    • Addition, $x_1 + x_2$, in the encrypted domain. \begin{eqnarray} \xi(x_1)\xi(x_2) &=& (g^{x_1}r_1^m)(g^{x_2}r_2^m)\mod m^2 \nonumber \\ &=& g^{x_1+x_2}(r_1r_2)^m \mod m^2 \nonumber \\ &=& \xi(x_1+x_2) \nonumber \end{eqnarray}

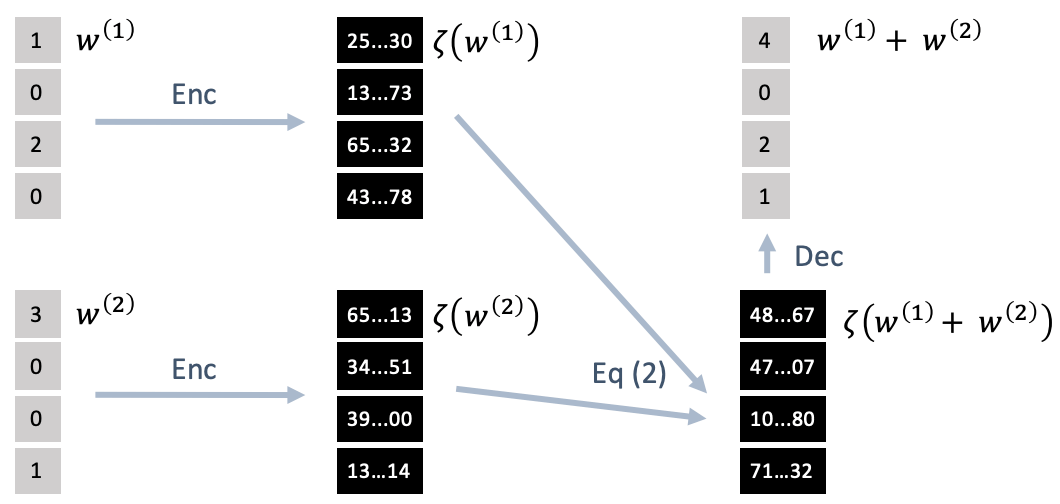

Encrypted Federated Learning

  • Yonetani et. al., "Privacy-Preserving Visual Learning Using Doubly Permuted Homomorphic Encryption", ICCV 2017

Homomorphic Encryption for Sparse Data

  • Sparse Data $\mathbf{x} \in \mathbb{R}^d$: $\mathbf{x} = \mathbf{K}\mathbf{v}$
    • $m$: number of non-zero elements
    • $\mathbf{v} \in \mathbb{R}^m$: real non-zero values
    • $\mathbf{K} \in \{0,1\}^{d \times m}$: binary non-zero support matrix
  • Doubly-Permuted Homomorphic Encryption for Sparse Data:
    • Choose encryption capacity $m \leq n \leq d$
    • Encrypt $\mathbf{v}_i \in \mathbb{R}^n$: $\xi(\mathbf{v}_i)$
    • Apply global permutation $\phi$ on $\mathbf{K}_i \in \{0,1\}^{d \times n}$: $\mathbf{K}'=\phi\mathbf{K}_i$
    • Apply local permutation $\phi_i$ on $\mathbf{K}_i' \in \{0,1\}^{d \times n}$: $\mathbf{K}_i''=\phi_i\mathbf{K}_i'$
  • Yonetani et. al., "Privacy-Preserving Visual Learning Using Doubly Permuted Homomorphic Encryption", ICCV 2017

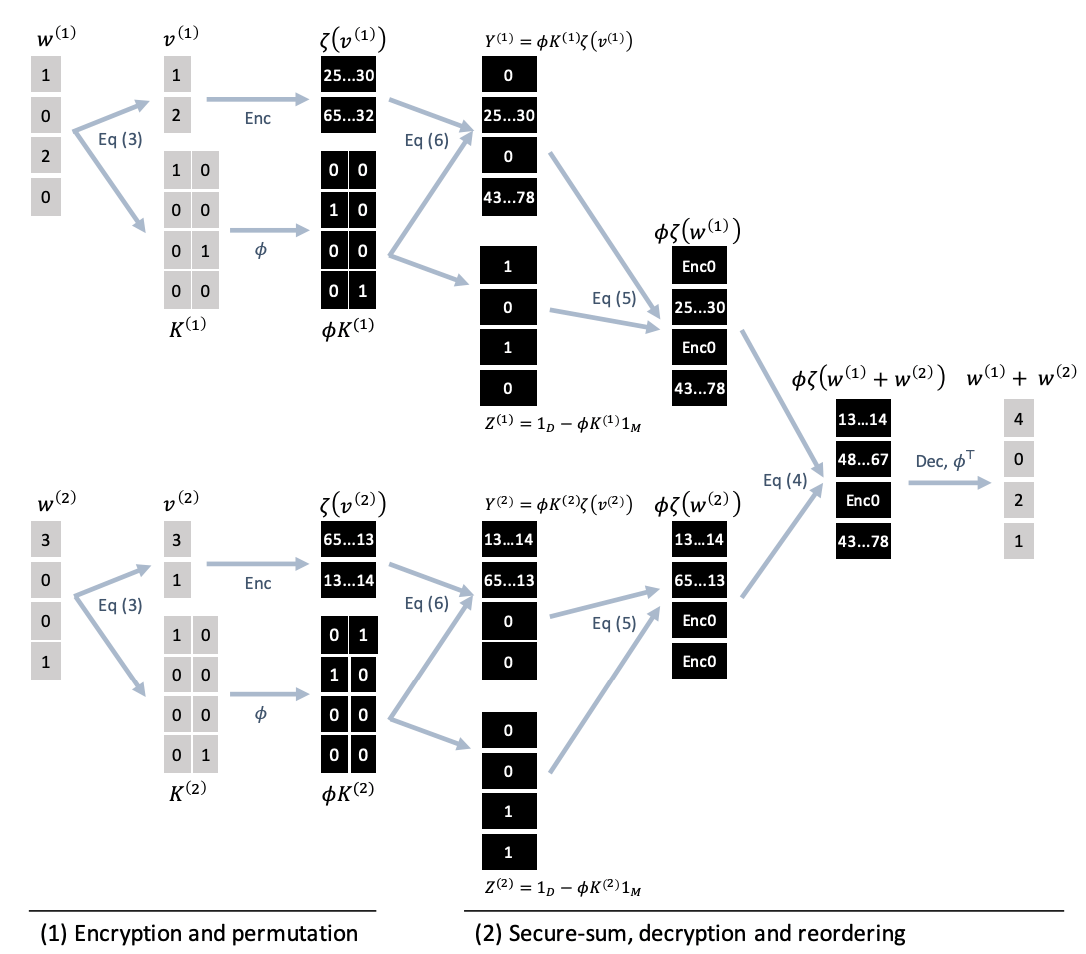

Doubly-Permuted Homomorphic Encryption

  • Yonetani et. al., "Privacy-Preserving Visual Learning Using Doubly Permuted Homomorphic Encryption", ICCV 2017

Experiments: Real-World Evaluation

Facial Attribute Recognition
Methods Accuracy Privacy
LLWT15 87 No
DP 78 Yes
DP+SGD 64 Yes
Our Approach 84 Yes
  • Yonetani et. al., "Privacy-Preserving Visual Learning Using Doubly Permuted Homomorphic Encryption", ICCV 2017

Secure K-Nearest Neighbor Search

Privacy Leakage in Augmented Reality

  • Pittaluga et. al., "Revealing Scenes by Inverting Structure from Motion Reconstructions", CVPR 2019

Information Leakage from Representations

  • Learned Embeddings:
  • Attacks on Embeddings:
    • Face reconstruction from template
  • Mai et. al., "On the reconstruction of face images from deep face templates," IEEE Transactions on Pattern Analysis and Machine Intelligence, 2018

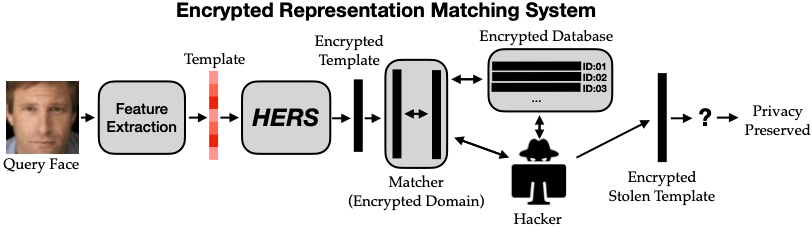

Secure Nearest Neigbhor Search

  • Englesma, Jain, Boddeti, "HERS: Homomorphically Encrypted Representation Search,", Arxiv 2020

Enrollment Protocol

  • Client Device:
    • generates cryptographic keys
    • captures image + extracts feature
    • encrypts feature
    • transmits encrypted feature + identity label to remote database
  • V.N. Boddeti, "Secure Face Matching Using Fully Homomorphic Encryption,", BTAS 2018

Authentication Protocol

  • Client Device:
    • captures biometric signature + extracts feature, encrypts feature, transmits encrypted feature + claimed identity label to remote database
  • Remote Database:
    • homomorphic inner product between encrypted probe and gallery, transmits encrypted scores to client
  • Client Device:
    • decrypts received scores and makes decision
  • V.N. Boddeti, "Secure Face Matching Using Fully Homomorphic Encryption,", BTAS 2018

Homomorphic Inner Products

    • Feature Matching: \begin{eqnarray} \mbox{Euclidean Distance: } d(\mathbf{x},\mathbf{y}) &=& \|\mathbf{x}-\mathbf{y}\|^2_2 = \mathbf{x}^T\mathbf{x} + \mathbf{y}^T\mathbf{y} - 2\mathbf{x}^T\mathbf{y} \nonumber \\ \mbox{Cosine Similarity: } s(\mathbf{x},\mathbf{y}) &=& \frac{\mathbf{x}^T\mathbf{y}}{\|\mathbf{x}\|\|\mathbf{y}\|} \nonumber \end{eqnarray}
    • Inner Product: \[\mathbf{x}^T\mathbf{y}=\sum_{i=1}^d x_iy_i\]
    • Homomorphic Inner Product: \[s(\mathbf{x},\mathbf{y}) = \mathcal{D}\left(\sum_{i=1}^d \mathcal{E}(x_i, \mathbf{\theta}_e)\mathcal{E}(y_i, \mathbf{\theta}_e), \mathbf{\theta}_d\right)\]

Batching: Amortized Homomorphic Inner Product

    • Inner Product: $d$ homomorphic multiplications + $d − 1$ homomorphic additions
    • Complexity: homomorphic multiplication $>>>$ homomorphic addition
    • Batching Inner Product: 1 homomorphic multiplications + $\log_2(d)$ homomorphic additions
    • Template Size: batching size $<<<$ no batching size
    • Key Idea: amortized inner product
      • Encode entire vector at once + repetitive circular shift and addition
  • V.N. Boddeti, "Secure Face Matching Using Fully Homomorphic Encryption,", BTAS 2018

Efficient Search with Dimensionality Reduction

  • Englesma, Jain, Boddeti, "HERS: Homomorphically Encrypted Representation Search,", Arxiv 2020

Experimental Setup

  • Datasets: ImageNet, MegaFace, Fingerprint-100M
  • Models: ResNet, ArcFace, DeepPrint
  • Options: feature quantization, security level, feature dimensionality
Image Retrieval Problem

Computational Complexity

  • Englesma, Jain, Boddeti, "HERS: Homomorphically Encrypted Representation Search,", Arxiv 2020

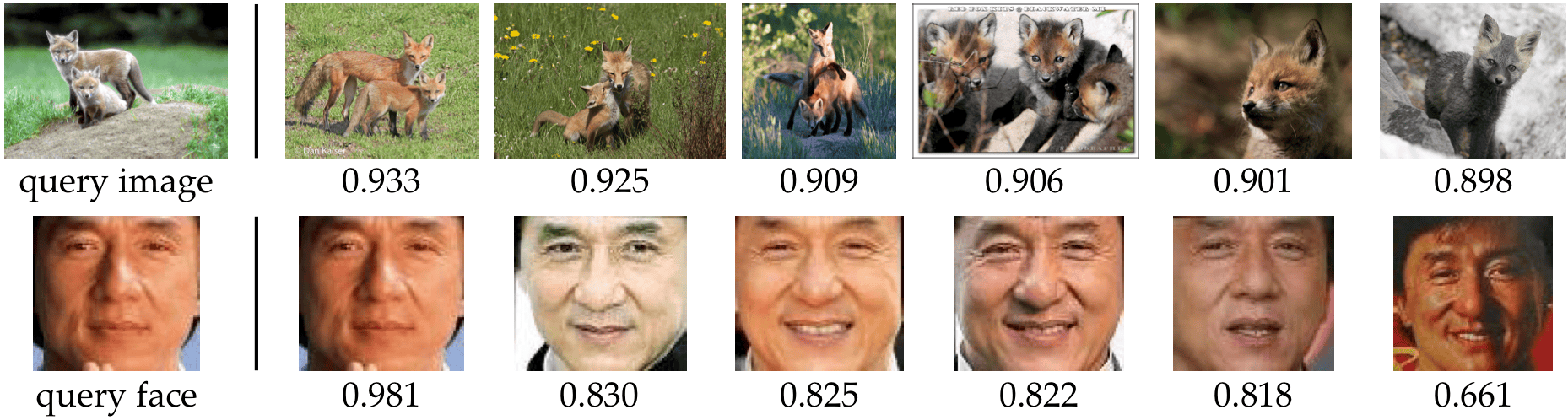

Image Retrieval

  • Englesma, Jain, Boddeti, "HERS: Homomorphically Encrypted Representation Search,", Arxiv 2020

Encrypted Feature Matching (1-to-1)

Amortized Homomorphically Encrypted Inner Products
  • V.N. Boddeti, "Secure Face Matching Using Fully Homomorphic Encryption,", BTAS 2018

Scalable Encrypted Search (1-to-$m$)

Image Retrieval on ImageNet (Rank-1 Accuracy in %)

Biometric Search (Rank-1 Accuracy in %)
  • Englesma, Jain, Boddeti, "HERS: Homomorphically Encrypted Representation Search,", Arxiv 2020

Two-Stage Search

  • Englesma, Jain, Boddeti, "HERS: Homomorphically Encrypted Representation Search,", Arxiv 2020

Summary

    • Homomorphic encryption is a promising mechanism for privacy-preserving CV/ML.
    • Doubly Permuted Homomorphic Encryption for Federated Learning: customized homomorphic encryption scheme for sparse data
    • Practical Homomorphically Encrypted Image Search and Retrieval: customized data encoding schemes for 1-to-1 and 1-to-$m$ matching
