Variational Autoencoders


CSE 891: Deep Learning

Vishnu Boddeti

Monday November 23, 2020

Latent Variable Model

  • Goal: modeling $p_{data}$
    • Autoregressive models + flows
      • All random variables are observed
    • Latent Variable Models (LVMs)
      • Some random variables are hidden - we do not get to observe

Fully Observed Models

Why Latent Variable Models?

  • Simpler, lower-dimensional representations of data often possible
    • Latent variable models hold the promise of automatically identifying those hidden representations


Why Latent Variable Models?

  • AR models are slow to sample because all pixels (observation dims) are assumed to be dependent on each other


  • We can make part of observation space independent conditioned on some latent variables
    • Latent variable models can have faster sampling by exploiting statistical patterns

Latent Variable Models

  • Sometimes, it is possible to design a latent variable model with an understanding of the causal process that generates data
  • In general, we do not know what are the latent variables and how they interact with observations
    • Most popular models make little assumption about what are the latent variables
    • Best way to specify latent variables is still an active area of research

Inferential Problems

  • Evidence Estimation \begin{eqnarray} p(\mathbf{x}) = \int p(\mathbf{x},\mathbf{z})d\mathbf{z} \nonumber \end{eqnarray}
  • Moment Computation \begin{eqnarray} \mathbb{E}[f(\mathbf{x})|\mathbf{z}] = \int f(\mathbf{x})p(\mathbf{x}|\mathbf{z})d\mathbf{x} \nonumber \end{eqnarray}
  • Prediction \begin{eqnarray} p(\mathbf{x}_{t+1}) = \int p(\mathbf{x}_{t+1}|\mathbf{x}_t)p(\mathbf{x}_t)d\mathbf{x}_t \nonumber \end{eqnarray}
  • Hypothesis Testing \begin{eqnarray} \mathcal{B} = \log p(\mathbf{x}|H_1) - \log p(\mathbf{x}|H_2) \nonumber \end{eqnarray}

Example Latent Variable Model




\begin{eqnarray} z &=& (z_1,z_2,\dots,z_K)\sim p(z;\beta)=\prod_{k=1}^K \beta_k^{z_k}(1-\beta)^{1-z_k} \\ x &=& (x_1,x_2,\dots,x_L)\sim p_{\theta}(x|z) \iff \mbox{Bernoulli}(x_i,DNN(z)) \end{eqnarray}

Latent Variable Model

    • Sample: \begin{eqnarray} z &\sim& p(z) \\ x &\sim& p_{\theta}(x|z) \end{eqnarray}
    • Evaluate Likelihood \begin{equation}p_{\theta}(x)=\sum_z p_Z(z)p_{\theta}(x|z)\end{equation}
    • Train \begin{equation}\max_{\theta}\sum_i \log p_{\theta}(x^{(i)})=\sum_i\log\sum_z p_Z(z)p_{\theta}(x^{(i)}|z)\end{equation}
    • Representation: $x \rightarrow z$

Training Latent Variable Model


    • Objective:
    • \begin{equation}\max_{\theta}\sum_i \log p_{\theta}(x^{(i)})=\sum_i\log\sum_z p_Z(z)p_{\theta}(x^{(i)}|z)\end{equation}
    • Scenario 1: $z$ can only take on a small number of values $\rightarrow$ exact objective tractable
    • Scenario 2: $z$ can only take on an impractical number of values $\rightarrow$ approximate

Bayesian Model Evidence

  • Learning Principle: Model Evidence
  • \[p(\mathbf{x}) = \int p(\mathbf{x},\mathbf{z})d\mathbf{z}\] \[\mathbf{x} = f(\mathbf{z})\]

Importance Sampling

  • $q(\mathbf{z}|\mathbf{x})>0$, when $f(\mathbf{z})p(\mathbf{z})\neq 0$
  • Easy to sample from $q(\mathbf{z})$
\begin{eqnarray} p(\mathbf{x}) &=& \int p(\mathbf{x}|\mathbf{z})p(\mathbf{z})d\mathbf{z} \nonumber \\ &=& \int p(\mathbf{x}|\mathbf{z})p(\mathbf{z})\frac{q(\mathbf{z}|\mathbf{x})}{q(\mathbf{z}|\mathbf{x})}d\mathbf{z} \nonumber \\ &=& \int p(\mathbf{x}|\mathbf{z})\frac{p(\mathbf{z})}{q(\mathbf{z}|\mathbf{x})}q(\mathbf{z}|\mathbf{x})d\mathbf{z} \nonumber \\ && w^{(s)} = \frac{p(z)}{q(z|x)} \hspace{10pt} z^{(s)} \sim q(z|x) \nonumber \\ p(\mathbf{x}) &=& \frac{1}{S}\sum_{s} w^{(s)} p(\mathbf{x}|\mathbf{z}^{(s)}) \nonumber \end{eqnarray}

Importance Sampling to Variational Inference



  • Jensen's Inequality:
  • \[\log \left(\int p(x)g(x)dx\right) \geq \int p(x)\log g(x)dx\]

  • Variational Lower Bound: \[\mathbb{E}_{q(\mathbf{z}|\mathbf{x})}[\log p(\mathbf{x}|\mathbf{z})]-KL[q(\mathbf{z}|\mathbf{x})\|p(\mathbf{z})]\]

Variational Free Energy

\begin{equation} \mathcal{F}(\mathbf{x},q) = \underbrace{\mathbb{E}_{q(\mathbf{z}|\mathbf{x})}[\log p(\mathbf{x}|\mathbf{z})]}_{\text{Reconstruction}}-\underbrace{KL[q(\mathbf{z}|\mathbf{x})\|p(\mathbf{z})]}_{\text{Penalty}} \nonumber \end{equation}
  • Interpreting the Lower Bound:
    • Approximate posterior distribution $q(\mathbf{z}|\mathbf{x})$: Best match to true posterior $p(\mathbf{z}|\mathbf{x})$, one of the unknown inferential quantities of interest to us.
    • Reconstruction Cost: The expected log-likelihood measures how well samples from $q(\mathbf{z}|\mathbf{x})$ are able to explain the data $\mathbf{x}$.
    • Penalty: Ensures that the explanation of the data $q(\mathbf{z}|\mathbf{x})$ doesn't deviate too far from your beliefs $p(\mathbf{z})$. A mechanism for realizing Ockham's razor.

Other Families of Variational Bounds

Variational Free Energy
\begin{equation} \mathcal{F}(\mathbf{x},q) = \mathbb{E}_{q(\mathbf{z}|\mathbf{x})}[\log p(\mathbf{x}|\mathbf{z})]-KL[q(\mathbf{z}|\mathbf{x})\|p(\mathbf{z})] \nonumber \end{equation}
Multi-Sample Variational Objective
\begin{equation} \mathcal{F}(\mathbf{x},q) = \mathbb{E}_{q(\mathbf{z}|\mathbf{x})}\left[\log \frac{1}{S}\sum_{S} \frac{p(\mathbf{z})}{q(\mathbf{z}|\mathbf{x})}p(\mathbf{x}|\mathbf{z})\right] \nonumber \end{equation}
Renyi Divergence
\begin{equation} \mathcal{F}(\mathbf{x},q) = \frac{1}{1-\alpha}\mathbb{E}_{q(\mathbf{z}|\mathbf{x})}\left[\left(\log \frac{1}{S}\sum_{S} \frac{p(\mathbf{z})}{q(\mathbf{z}|\mathbf{x})}p(\mathbf{x}|\mathbf{z})\right)^{1-\alpha}\right] \nonumber \end{equation}

Learning: Variational EM

\begin{equation} \mathcal{F}(\mathbf{x},q) = \mathbb{E}_{q(\mathbf{z}|\mathbf{x})}[\log p(\mathbf{x}|\mathbf{z})]-KL[q(\mathbf{z}|\mathbf{x})\|p(\mathbf{z})] \nonumber \end{equation}


  • Alternating Optimization
  • Repeat:
    • E-Step: $\phi \propto \nabla_{\phi}\mathcal{F}(\mathbf{x},q)$ (Variational params)
    • M-Step: $\theta \propto \nabla_{\theta}\mathcal{F}(\mathbf{x},q)$ (Model params)

Stochastic Approximation

\begin{equation} \mathcal{F}(\mathbf{x},q) = \mathbb{E}_{q(\mathbf{z}|\mathbf{x})}[\log p(\mathbf{x}|\mathbf{z})]-KL[q(\mathbf{z}|\mathbf{x})\|p(\mathbf{z})] \nonumber \end{equation}
  • Optimize using a stochastic gradient based on a mini-batch of data
  • $N$ is a mini-batch sampled with replacement from the full dataset.
  • E-Step (compute $q$): Inference \begin{eqnarray} \text{For } n&=&1,\dots,N \nonumber \\ && \phi \propto \nabla_{\phi} \mathbb{E}_{q_{\phi}(z)}[\log p(\mathbf{x}_n|\mathbf{z}_n)]-KL[q(\mathbf{z}_n|\mathbf{x}_n)\|p(\mathbf{z})] \nonumber \end{eqnarray}
  • M-Step: Parameter Learning \[\theta \propto \frac{1}{N}\sum_{n} \mathbb{E}_{q_{\phi}(z)}[\nabla_{\theta}\log p_{\theta}(\mathbf{x}_n|\mathbf{z}_n)]\]

Memoryless Inference

\begin{equation} \mathcal{F}(\mathbf{x},q) = \mathbb{E}_{q(\mathbf{z}|\mathbf{x})}[\log p(\mathbf{x}|\mathbf{z})]-KL[q(\mathbf{z}|\mathbf{x})\|p(\mathbf{z})] \nonumber \end{equation}
  • E-step does not reuse any previous computation.
  • Memoryless: Any inference computations are discarded after the M-step update.
  • E-Step (compute $q$): Inference \begin{eqnarray} \text{For } n&=&1,\dots,N \nonumber \\ && \phi \propto \nabla_{\phi} \mathbb{E}_{q_{\phi}(z)}[\log p(\mathbf{x}_n|\mathbf{z}_n)]-KL[q(\mathbf{z}_n|\mathbf{x}_n)\|p(\mathbf{z})] \nonumber \end{eqnarray}
  • M-Step: Parameter Learning \[\theta \propto \frac{1}{N}\sum_{n} \mathbb{E}_{q_{\phi}(z)}[\nabla_{\theta}\log p_{\theta}(\mathbf{x}_n|\mathbf{z}_n)]\]

Amortized Inference

  • Instead of solving E-step for every observation, amortize using a model.
  • Inference Network: $q$ is an encoder, an inverse model, recognition model.
  • Parameters of $q$ are now a set of global parameters used for inference of all the data points, both test and train.
  • Amortize (spread) the cost of inference over all data.
  • Joint optimization of variational and model parameters.

Amortized Variational Inference

\begin{equation} \mathcal{F}(\mathbf{x},q) = \mathbb{E}_{q(\mathbf{z}|\mathbf{x})}[\log p(\mathbf{x}|\mathbf{z})]-KL[q(\mathbf{z}|\mathbf{x})\|p(\mathbf{z})] \nonumber \end{equation}
  • Variational Auto-Encoder: Specific combination of variational inference in latent variable models using inference networks
  • Model (Decoder): likelihood $p(\mathbf{x}|\mathbf{z})$
  • Inference (Encoder): variational distribution $q(\mathbf{z}|\mathbf{x})$
  • Transforms an auto-encoder into a generative model.

Latent Gaussian VAE




\begin{eqnarray} p(\mathbf{z}) &=& \mathcal{N}(\mathbf{0},\mathbf{I}) \nonumber \\ p_{\theta}(\mathbf{x}|\mathbf{z}) &=& \mathcal{N}(\mathbf{\mu}_{\theta}(\mathbf{z}),\mathbf{\Sigma}_{\theta}(\mathbf{z})) \nonumber \\ q_{\phi}(\mathbf{z}|\mathbf{x}) &=& \mathcal{N}(\mathbf{\mu}_{\phi}(\mathbf{x}),\mathbf{\Sigma}_{\phi}(\mathbf{x})) \nonumber \end{eqnarray}

$KL(p\|q)$ vs $KL(q\|p)$

Reverse KL: Zero-Forcing/Mode-Seeking

Variational Auto-Encoders in General

\begin{equation} \mathcal{F}(q) = \mathbb{E}_{q_{\phi}(\mathbf{z}|\mathbf{x})}[\log p_{\theta}(\mathbf{x}|\mathbf{z})]-KL[q_{\phi}(\mathbf{z}|\mathbf{x})\|p(\mathbf{z})] \nonumber \end{equation}
  • Design Choices:
    • Prior on latent variables: continuous, discrete, Gaussian, Bernoulli, mixture
    • Likelihood Function: iid (static), sequential, temporal, spatial
    • Approximating Posterior: distribution, sequential, spatial
  • Scalability and Ease of Implementation:
    • stochastic gradient estimation
    • stochastic gradient descent (and variants)

Minimum Description Length

\begin{equation} \mathcal{F}(\mathbf{x},q) = \underbrace{\mathbb{E}_{q(\mathbf{z}|\mathbf{x})}[\log p(\mathbf{x}|\mathbf{z})]}_{\text{Data code-length}}-\underbrace{KL[q(\mathbf{z}|\mathbf{x})\|p(\mathbf{z})]}_{\text{Hypothesis code}} \nonumber \end{equation}
  • Compressibility: Regularity in our data can be explained with latent variables.
  • Inference is a problem of compression.
  • Minimum Description Length (MDL):
    • we must find the ideal shortest message of our data $\mathbf{x}$: marginal likelihood.
    • Must introduce an approximation to the ideal message.

Learning: Stochastic Backpropagation

Common gradient problem
\begin{equation} \nabla_{\phi}\mathbb{E}_{q_{\phi}(\mathbf{z})}[f_{\theta}(\mathbf{z})] = \nabla \int q_{\phi}(\mathbf{z})f_{\theta}(\mathbf{z})d\mathbf{z} \nonumber \end{equation}


\[\mathbf{z} \sim q_{\phi}(\mathbf{x})\] \[\mathbf{z} = g(\epsilon,\phi)\] \[\epsilon \sim p(\epsilon)\]

Generating Complex Distributions

  • Generating complex distributions from simple distributions.
  • Substitute random variable by deterministic function of simpler random variable.
Transformation Models
$\mathcal{N}(0,1)$ $\epsilon \sim [0,1]$ $\sqrt{ln\left(\frac{1}{\epsilon_1}\right)}\cos(2\pi\epsilon_2)$
$\mathcal{N}(\mathbf{\mu},\mathbf{RR}^T)$ $\epsilon \sim \mathcal{N}(\mathbf{0},\mathbf{I})$ $\mu + \mathbf{R}\mathbf{\epsilon}$
$\exp(-x); x > 0$ $\epsilon \sim [0,1]$ $ln(\frac{1}{\epsilon})$
$\frac{1}{\pi(1+x^2)}$ $\epsilon \sim [0,1]$ $tan(\pi\epsilon)$
$\exp(-|x|)$ $\epsilon \sim [0,1]$ $ln\left(\frac{\epsilon_1}{\epsilon_2}\right)$

Implementing Variational Algorithms

Ideally want probabilistic programming using variational inference. Variational inference turns integration into optimization.


  • Differentiation: Torch7, TensforFlow
  • Stochastic gradient descent and other preconditioned optimization
  • Same code can run on GPUs and distributed clusters
  • Probabilistic models are modular and can be easily combined

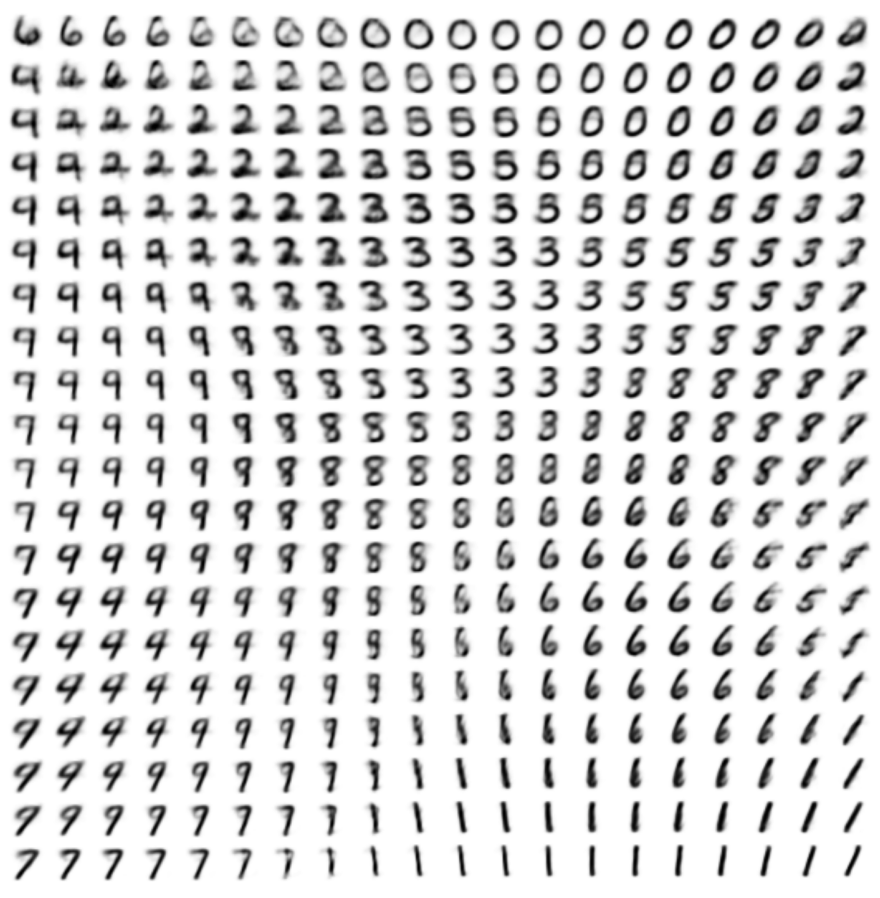

Visualizing Latent Space

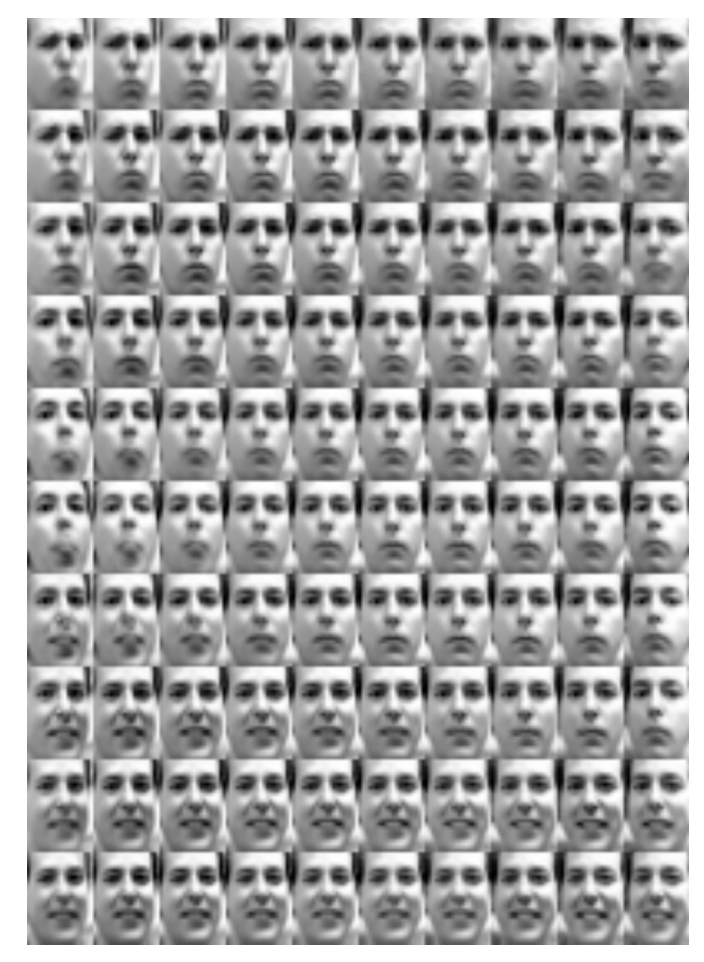

Interpolating Latent Space

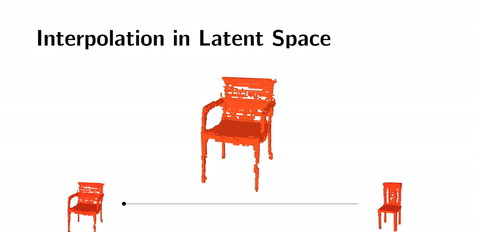

Interpolating Latent Space

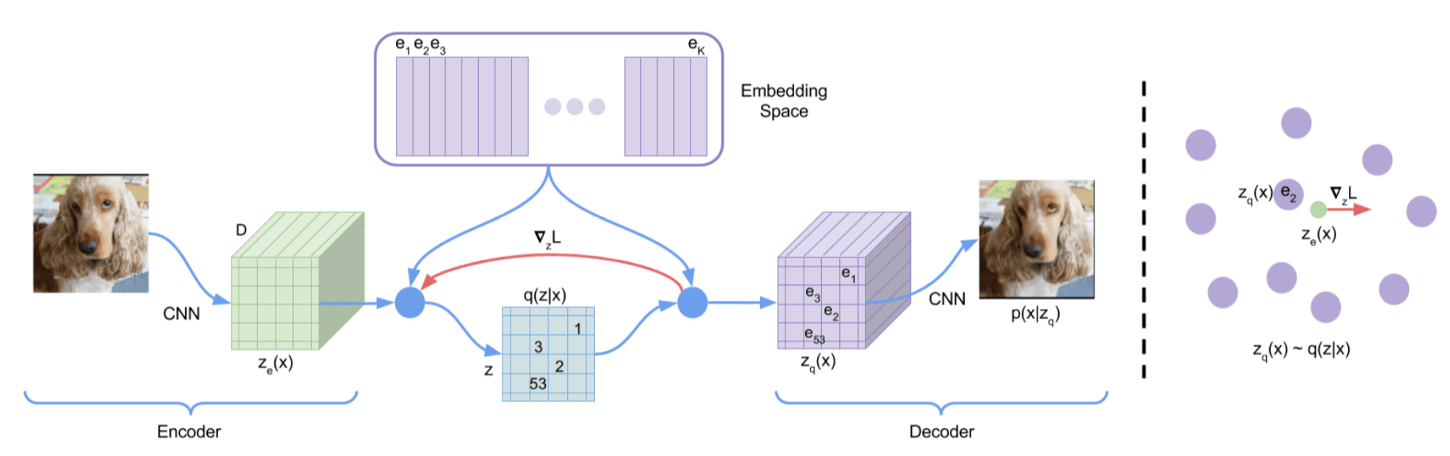

VQ-VAE

\begin{equation} L = \log p(x|z_q(x)) + \|sg[z_e(x)]-e\|_2^2 + \beta\|z_e(x)-sg[e]\|_2^2 \end{equation}

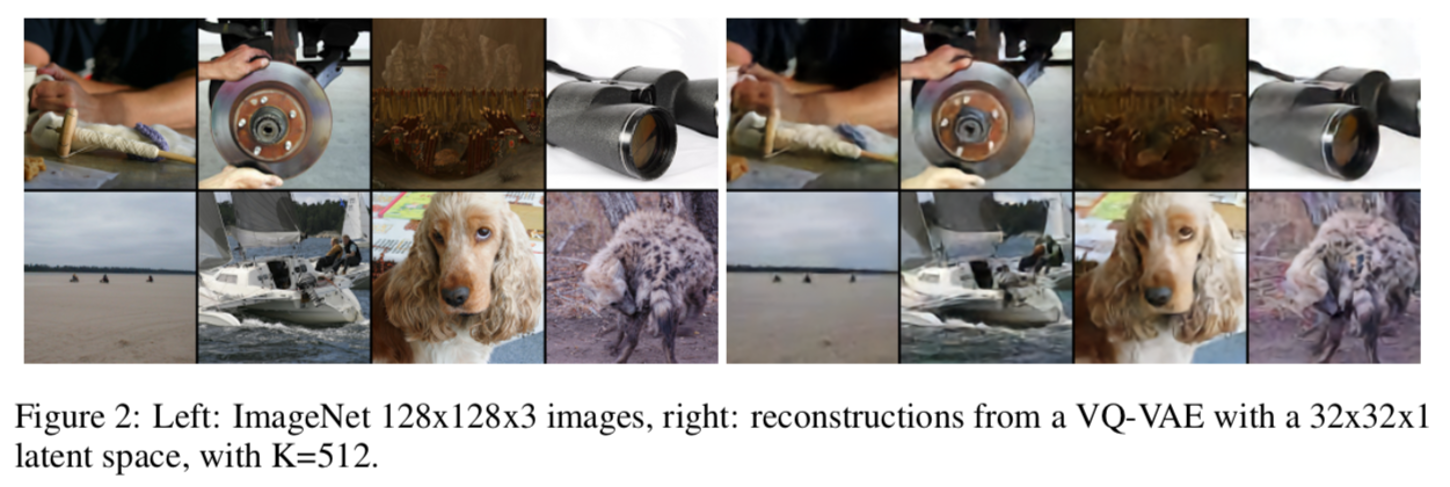

VQ-VAE

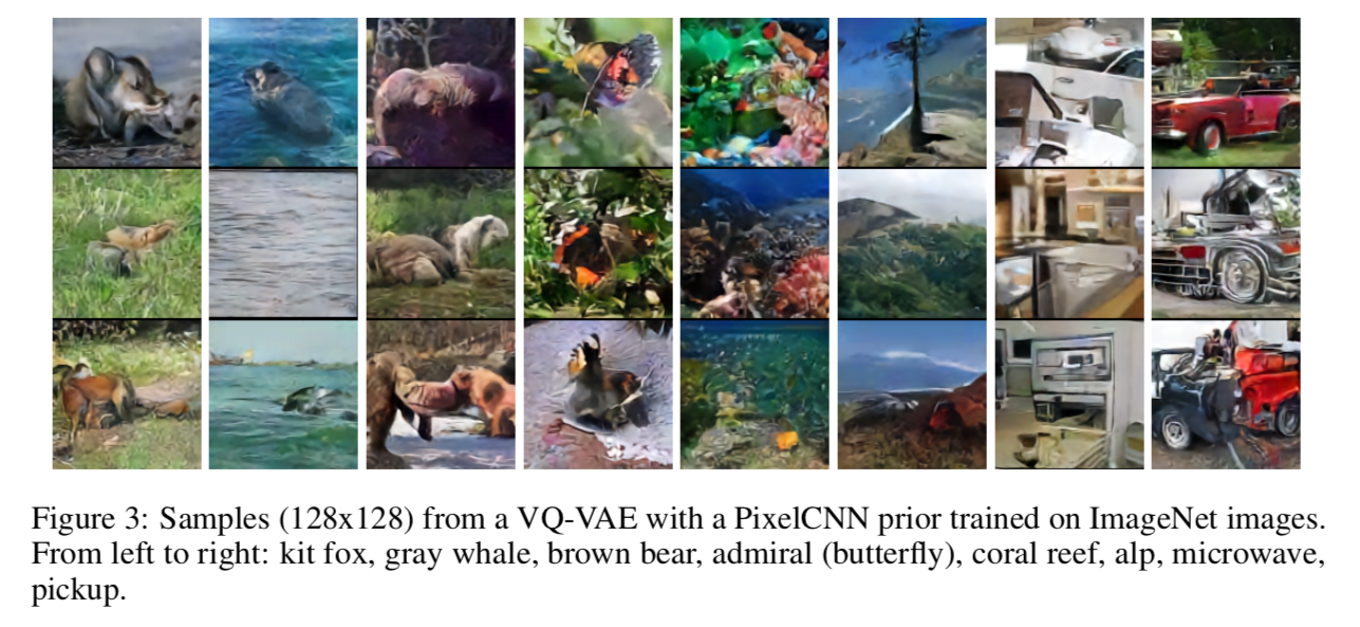

VQ-VAE

Learning Disentangled Representations

$\beta$-VAE
\begin{equation} \mathcal{F}(\mathbf{x},q) = \mathbb{E}_{q(\mathbf{z}|\mathbf{x})}[\log p(\mathbf{x}|\mathbf{z})]-\beta KL[q(\mathbf{z}|\mathbf{x})\|p(\mathbf{z})] \nonumber \end{equation}

Learning Disentangled Representations
