Uninformed Search


CSE 440: Introduction to Artificial Intelligence

Vishnu Boddeti


Content Credits: CMU AI, http://ai.berkeley.edu

Today

  • Uninformed Search
    • Search Trees
    • Search Algorithm Properties
    • Depth First Search
    • Breadth First Search
    • Uniform Cost Search
  • Reading
    • Today's Lecture: RN Chapter 3.1-3.4
    • Next Lecture: RN Chapter 3.5-3.7, 4.1-4.2

State Space Graphs and Search Trees

State Space Graphs

  • State Space Graph: A mathematical representation of a search problem
    • Nodes are (abstracted) world configurations
    • Arcs represent successors (action results)
    • The goal test is a set of goal nodes (maybe only one)
  • In a state space graph, each state occurs only once
  • We can rarely build this full graph in memory (too big), but it is a useful idea

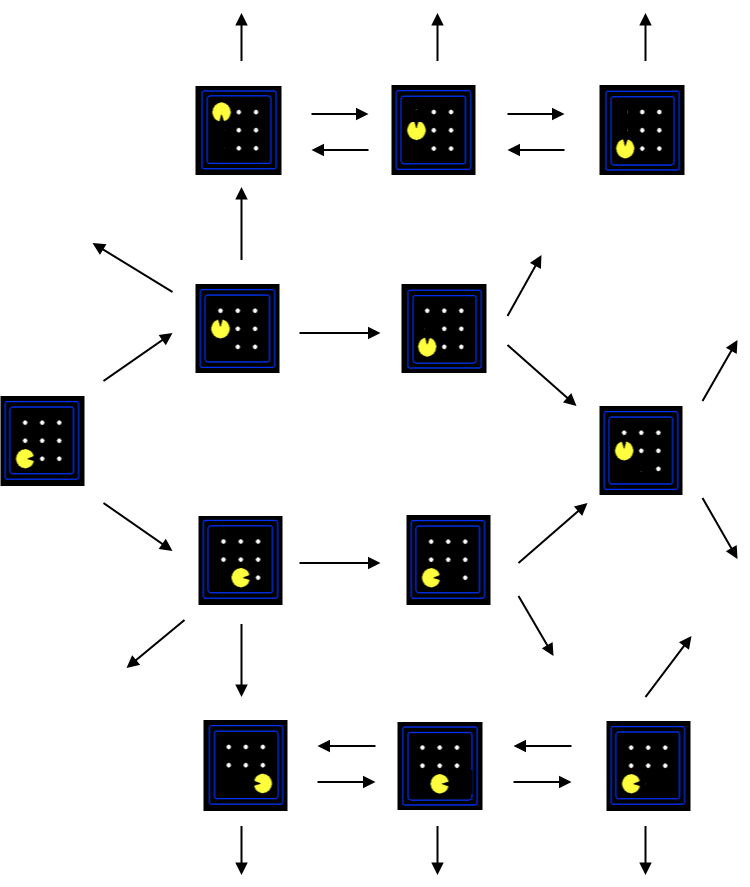

Tiny state space graph for a tiny search problem

Search Trees

  • A search tree :
    • A "what if" tree of plans and their outcomes
    • The start state is the root node
    • Child nodes correspond to successors
    • Nodes show states, but correspond to plans/actions that achieve those states
    • Building the whole tree is impossible for most problems

State Space vs Search Trees

State Space Graph
  • Each NODE in search tree is an entire PATH in state space graph.
  • Construct both on demand – and construct as little as possible.

Tree Search

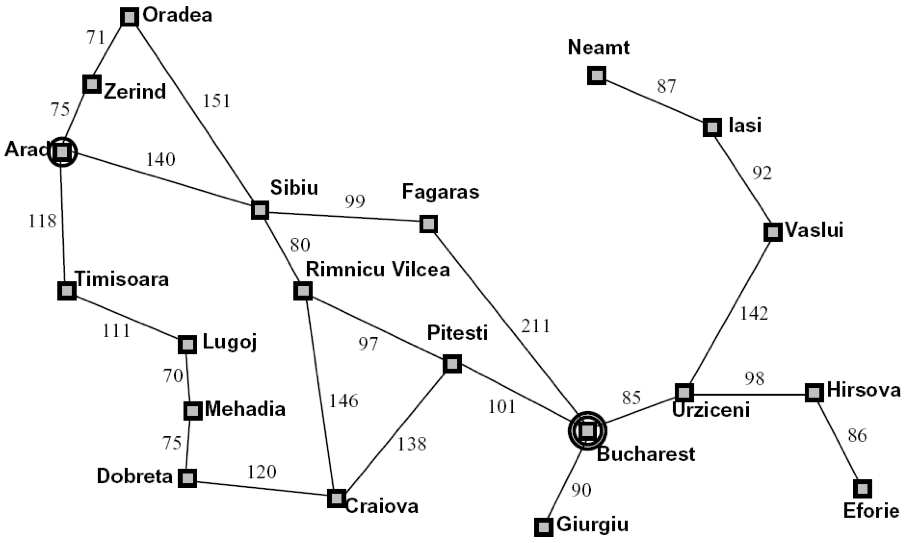

Search Example: Traveling in Romania

Search Tree: Traveling in Romania

  • Search:
    • Expand out potential plans (tree nodes)
    • Maintain a fringe of partial plans under consideration
    • Try to expand as few tree nodes as possible

Tree Search Algorithm

Main question: which fringe nodes to explore?

Tree Search Example

Search Tree

Search Algorithm Properties

Search Algorithm Properties

  • Complete: Guaranteed to find a solution if one exists?
  • Optimal: Guaranteed to find the least cost path?
  • Time Complexity?
  • Space Complexity
  • Cartoon of search tree:
    • $b$ is the branching factor
    • $m$ is the maximum depth
    • solutions at various depths
  • Number of nodes in a tree?
    • $1+b+b^2+\cdots+b^m=\mathcal{O}(b^m)$

Depth-First Search

Depth First Search

State Space Graph
  • Strategy: expand the deepest node first
  • Implementation: fringe is a FILO or LIFO stack

Depth-First Search (DFS) Properties

  • What nodes DFS expand?
    • Some left prefix of the tree.
    • Could process the whole tree!
    • If $m$ is finite, takes time $\mathcal{O}(b^m)$
  • Is it complete?
    • $m$ could be infinite, so only if we prevent cycles (more later)
  • How much space does the fringe take?
    • Only has siblings on path to root, so $\mathcal{O}(bm)$.
  • Is it optimal?
    • No, it finds the "leftmost" solution, regardless of depth or cost.

Breadth-First Search

Breadth First Search

State Space Graph
  • Strategy: expand the shallowest node first
  • Implementation: fringe is a FIFO queue

Breadth-First Search (BFS) Properties

  • What nodes BFS expand?
    • Processes all nodes above shallowest solution
    • Let depth of shallowest solution be $s$
    • Search takes time $\mathcal{O}(b^s)$
  • How much space does the fringe take?
    • Roughly the last tier, so $\mathcal{O}(b^s)$.
  • Is it complete?
    • $s$ must be finite if a solution exists, so yes!
  • Is it optimal?
    • Only if costs are all 1 (more on costs later)

Iterative Deepening

  • Idea: get the space advantage of DFS with the time / shallow-solution advantage of BFS.
    • Run a DFS with depth limit 1. If no solution $\dots$
    • Run a DFS with depth limit 2. If no solution $\dots$
    • Run a DFS with depth limit 3. If no solution $\dots$
  • Is this not wastefully redundant?
    • Generally most work happens in the deepest level searched, so it is not so bad.

Cost Sensitive Search

BFS finds the shortest path in terms of number of actions. It does not find the least-cost path. We will now cover a similar algorithm which does find the least-cost path.

Uniform Cost Search

Uniform Cost Search (UCS)

State Space Graph
  • Strategy: expand a cheapest node first
  • Implementation: fringe is a priority queue (priority: cumulative cost)

UCS Properties

  • What nodes UCS expand?
    • Processes all nodes with cost less than cheapest solution!
    • If that solution costs $C^*$ and arcs cost at least $\epsilon$ , then the "effective depth" is roughly $\left(\frac{c^*}{\epsilon}\right)$
    • Takes time $\mathcal{O}\left(b^{\frac{C^*}{\epsilon}}\right)$ (exponential in effective depth)
  • How much space does the fringe take?
    • Has roughly the last tier, so $\mathcal{O}\left(b^{\frac{C^*}{\epsilon}}\right)$
  • Is it complete?
    • Assuming best solution has a finite cost and minimum arc cost is positive, yes!

Uniform Cost Issues

  • Remember: UCS explores increasing cost contours
  • The good: UCS is complete and optimal!
  • The bad:
    • Explores options in every "direction"
    • No information about goal location
  • Will be addressed soon.

UCS Demo

The One Queue

  • All these search algorithms are the same except for fringe strategies
    • Conceptually, all fringes are priority queues (i.e. collections of nodes with attached priorities)
    • Practically, for DFS and BFS, you can avoid the $log(n)$ overhead from an actual priority queue, by using stacks and queues
    • Can even code one implementation that takes a variable queuing object

Search and Models

  • Search operates over models of the world
    • The agent does not actually try all the plans out in the real world.
    • Planning is all "in simulation"
    • Your search is only as good as your models

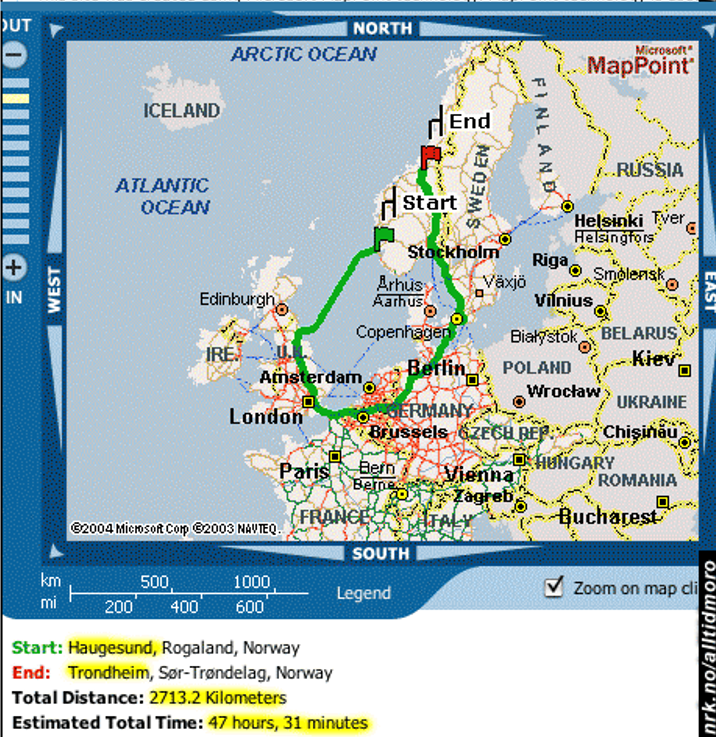

Search Gone Wrong?

Q & A

XKCD
