Optimization


CSE 849: Deep Learning

Vishnu Boddeti

Overview

  • So far we saw how to compute gradients, and how to compute them efficiently. What do we actually do with the gradients?
  • Today's lecture: gradient descent, various things that can go wrong in gradient descent, and what to do about them.
  • Assume that all the parameters we wish to learn have been grouped into a single vector $\mathbf{\theta}$.

What is Optimization?

$$\mathbf{w}^* = \mbox{arg} \min_{\mathbf{w}} \mathcal{L}(\mathbf{w})$$

Optimization

Key Idea: Follow the Slope

Gradient Descent

  • Gradient Descent: procedure to minimize a function
    • Optimizes a linear approximation of the function at the given point.
    • \[f(\mathbf{x}) = f(\mathbf{x}_0) + (\mathbf{x}-\mathbf{x}_0)^T\nabla_{\mathbf{x}}f(\mathbf{x}_0)\]
    • compute gradient
    • \[f'(\mathbf{x}_0) = \nabla_{\mathbf{x}}f(\mathbf{x}_0)\]
    • take step in opposite direction
    • \[\Delta \mathbf{x}_0 = -\nabla_{\mathbf{x}}f(\mathbf{x}_0)\]

Gradient Descent...

  • Iteratively step in the direction of the negative gradient (direction of local steepest descent)

      # vanilla gradient descent
      w = initialize_weights()
      for t in range(num_steps):
        dw = compute_gradients(loss_fn, data, w)
        w -= learning_rate * dw

  • hyperparameters
    • weight initialization method
    • number of steps
    • learning rate

Gradient Descent

  • Gradient descent for empirical risk minimization
    • initialize $\mathbf{\theta}$
    • for T iterations
    • $$ \begin{eqnarray} \nabla_{\mathbf{\theta}}J(\mathbf{\theta}) &=& \frac{1}{N}\sum_n\nabla_{\theta}l(f(\mathbf{x}_n;\mathbf{\theta}),\mathbf{y}_n)+\lambda\nabla_{\mathbf{\theta}}\Omega(\mathbf{\theta}) \nonumber \\ \mathbf{\theta}_{t+1} &=& \mathbf{\theta}_{t} - \alpha\nabla_{\mathbf{\theta}}J(\mathbf{\theta}_t) \nonumber \end{eqnarray} $$

Variants of Gradient Descent

  • Batch Gradient Descent:
  • \[\Delta_{\mathbf{\theta}} = \frac{1}{N}\sum_n\nabla_{\theta}l(f(\mathbf{x}_n;\mathbf{\theta}),\mathbf{y}_n)\]
  • Stochastic Gradient Descent:
  • \[\Delta_{\mathbf{\theta}} = \nabla_{\theta}l(f(\mathbf{x}_n;\mathbf{\theta}),\mathbf{y}_n)\]
  • Mini-Batch Gradient Descent:
  • \[\Delta_{\mathbf{\theta}} = \frac{1}{m}\sum_{n \in M}\nabla_{\theta}l(f(\mathbf{x}_n;\mathbf{\theta}),\mathbf{y}_n)\]

Stochastic Gradient Descent

  • Algorithm that performs updates after each example.
    • initialize $\mathbf{\theta}$
    • for N iterations:
      • for each training example $(\mathbf{x}_n,\mathbf{y}_n)$
      • $$\begin{eqnarray} J(\mathbf{\theta}) &=& \frac{1}{m}\sum_{n \in M} l(f(\mathbf{x}_n,\mathbf{\theta}),\mathbf{y}_n) + \lambda\Omega(\mathbf{\theta}) \nonumber \\ \mathbf{\theta}_t &=& \mathbf{\theta}_{t-1} - \alpha\nabla_{\mathbf{\theta}}J(\mathbf{\theta}_{t-1}) \nonumber \end{eqnarray}$$
  • Hyperparameters
    • $\alpha$ is the learning rate, typically follows an annealing schedule.
    • batch size, 32/64/128 common
    • data sampling, has to be randomized

SGD With Noise

  • Another variant: use noisy gradients
  • Anneal the noise down with iterations
$$ \begin{eqnarray} \mathbf{\theta}_t &=& \mathbf{\theta}_{t-1} - \alpha\left(\nabla_{\mathbf{\theta}}J(\mathbf{\theta}) + \eta \right) \nonumber \\ \eta &\sim& \mathcal{N}(0,\sigma^2_t) \nonumber \\ \sigma^2_t &=& \frac{\alpha}{(1+t)^{\gamma}} \nonumber \end{eqnarray} $$

Optimization Landscapes

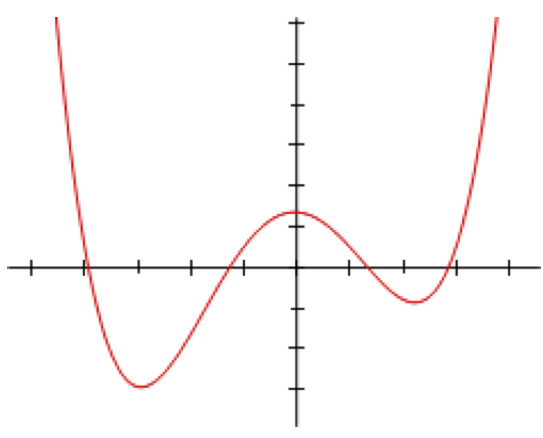

Local Minima

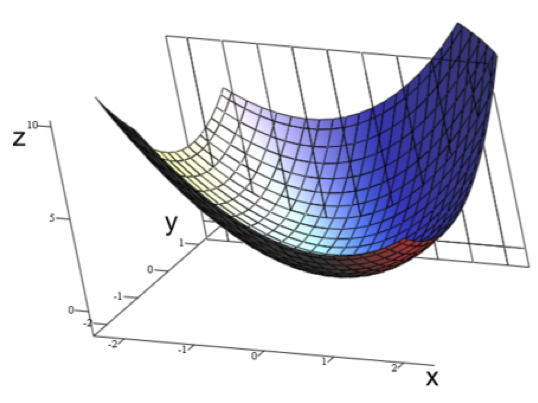

  • If a function is convex, it has no spurious local minima, i.e. any local minimum is also a global minimum.
  • So SGD is guaranteed to eventually reach the global minimum.
  • Unfortunately, training a network with hidden units cannot be convex because of permutation symmetries.
    • we can re-order the hidden units in a way that preserves the function computed by the network.

Local Minima (Fear Not)

  • Generally, local minima are not something we worry much about when we train most neural nets.
    • They are normally only a problem if there are local minima "in function space". E.g., CycleGANs have a bad local minimum where they learn the wrong color mapping between domains.
  • It is possible to construct arbitrarily bad local minima even for ordinary classification MLPs. We not fully understand why they don't arise in practice.
  • Intuitively, if you have enough randomly sampled hidden units, you can approximate any function just by adjusting the output layer.
    • It reduces to a regression problem, which is convex.
    • Hence, local optima can probably be fixed by adding more hidden units.
    • We do not have a rigorous proof, but we have ample empirical evidence.
  • Over the past 5 years or so, CS theorists have made lots of progress proving gradient descent converges to global minima for some non-convex problems, including some specific neural net architectures.

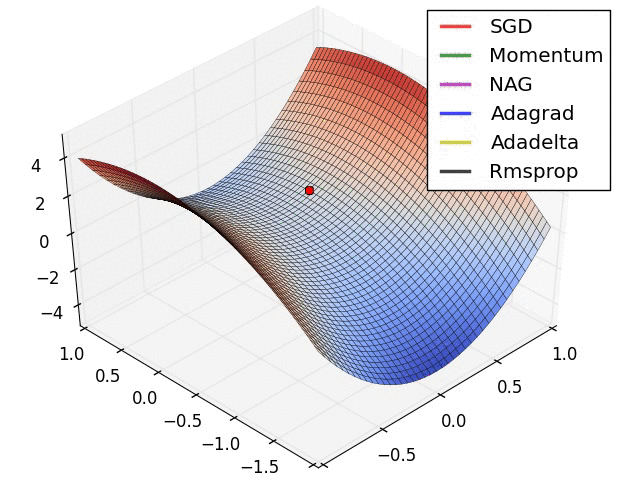

Saddle Points

  • A saddle point is a point where:
    • $\nabla \mathcal{L}(\mathbf{\theta})=\mathbf{0}$
    • The Hessian $\mathbf{H}(\mathbf{\theta})$ has some positive and some negative eigenvalues, i.e., some directions with positive curvature and some with negative curvature

Saddle Points: A Problem?

  • When would saddle points be a problem?
    • Suppose you have two hidden units with identical incoming and outgoing weights.
    • After a gradient descent update, they will still have identical weights. By induction, they’ll always remain identical.
    • But if you perturbed them slightly, they can start to move apart.
    • Important special case: never initialize all your weights to zero!
      • Instead, break the symmetry by using small random values.

Plateaux

  • A flat region is called a plateau. (Plural: plateaux)
  • Can you think of examples?
    • 0-1 loss
    • hard threshold activations
    • logistic activations and least-squares

Plateaux

  • An important example of a plateau is a saturated unit. This is when it is in the flat region of its activation function. Recall the backprop equation for the weight derivative:
$$\begin{equation} \begin{aligned} z_i' &= h'\phi'(z) \\ w_{ij}' &= z_i'x_j \end{aligned} \end{equation}$$
  • If $\phi'(z_i)$ is always close to zero, then the weights will get stuck.
  • If there is a ReLU unit whose input $z_i$ is always negative, the weight derivatives will be exactly $0$. We call this a dead unit.

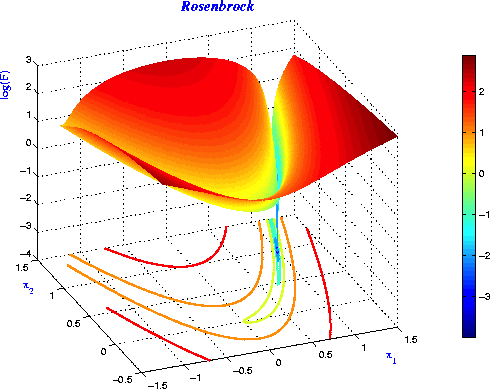

Ill-Conditioned Curvature

  • Suppose Hessian $\mathbf{H}$ has some large positive eigenvalues (i.e. high-curvature directions) and some eigenvalues close to 0 (i.e. low-curvature directions).

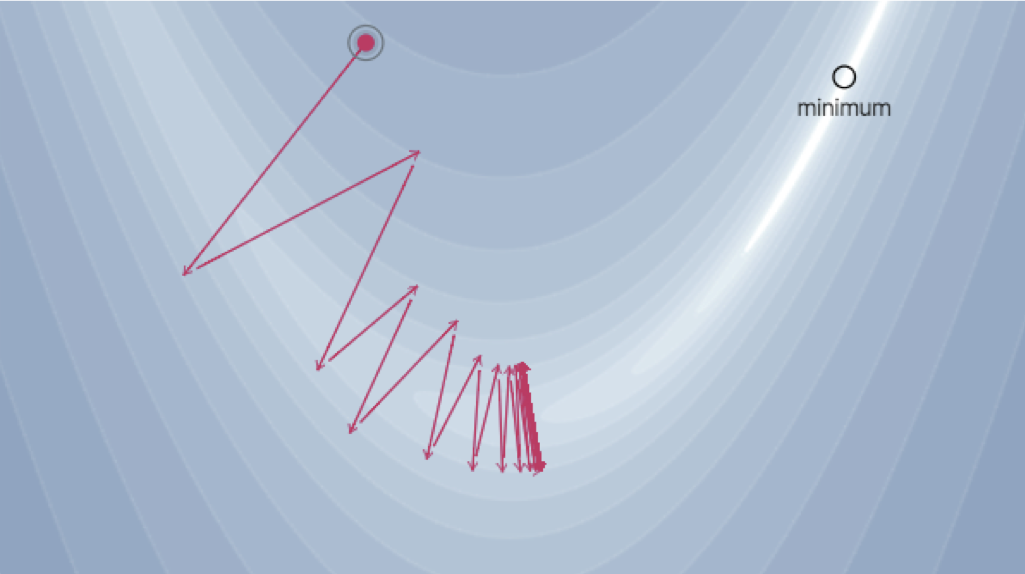

  • Gradient descent bounces back and forth in high curvature directions and makes slow progress in low curvature directions.
    • To interpret this visually: the gradient is perpendicular to the contours.
  • This is known as ill-conditioned curvature. It’s very common in neural net training.

Gradient Descent...

Ill-Conditioned Curvature

$x_1$ $x_2$ $t$
100.8 0.00345 5.1
340.1 0.00181 3.2
200.2 0.00267 4.1
$\vdots$ $\vdots$ $\vdots$
  • Suppose we have the following dataset for linear regression.
  • Which weight, $w_1$ or $w_2$, will receive a larger gradient descent update?
  • Which one do you want to receive a larger update?

Ill-Conditioned Curvature

  • Another Example:
$x_1$ $x_2$ $t$
1003.2 1005.1 3.3
1001.1 1008.2 4.8
998.3 1003.4 2.9
$\vdots$ $\vdots$ $\vdots$

Curvature Normalization

  • To avoid these problems, it is a good idea to center your inputs to zero mean and unit variance, especially when they are in arbitrary units (feet, seconds, etc.).
  • $$\tilde{x}_j = \frac{x_j-u_j}{\sigma_j}$$
  • Hidden units may have non-centered activations, and this is harder to deal with.
    • One trick: replace logistic units (which range from 0 to 1) with Tanh units (which range from -1 to 1)
    • A normalization method called batch normalization explicitly centers each hidden activation. It often speeds up training by 1.5-2x, and it is available in all the major neural net frameworks.

Momentum

  • Unfortunately, even with these normalization tricks, ill-conditioned curvature is a fact of life. We need algorithms that are able to deal with it.
  • Momentum:
  • Nesterov Accelerated Gradient:


Sutskever et al, “On the importance of initialization and momentum in deep learning”, ICML 2013

Why Momentum

  • In the high curvature directions, the gradients cancel each other out, so momentum dampens the oscillations.
  • In the low curvature directions, the gradients point in the same direction, allowing the parameters to pick up speed.
  • If the gradient is constant (i.e. the cost surface is a plane), the parameters will reach a terminal velocity of
  • $$ -\frac{\alpha}{1-\gamma}\cdot \frac{\partial \mathcal{L}}{\partial \mathbf{\theta}} $$
  • This suggests if you increase $\gamma$, you should lower $\alpha$ to compensate.
  • Momentum sometimes helps a lot, and almost never hurts.

Ravines

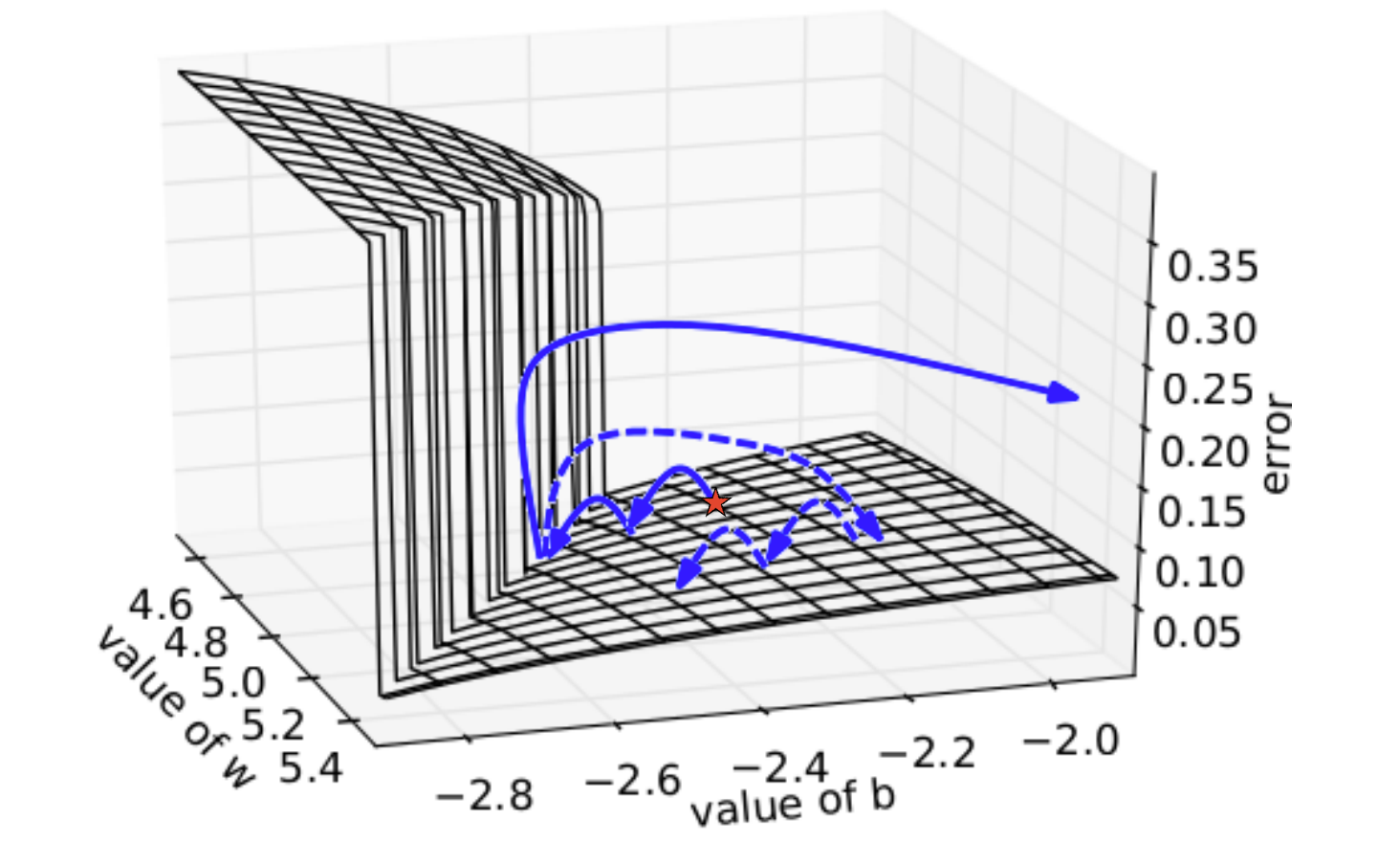

  • Even with momentum and normalization tricks, narrow ravines are still one of the biggest obstacles in optimizing neural networks.
  • Empirically, the curvature can be many orders of magnitude larger in some directions than others!
  • Second-order optimization develops algorithms which explicitly use curvature information (second derivatives), but these are complicated and difficult to scale to large neural nets and large datasets.
  • Adam is an optimization algorithm that uses just a little bit of curvature information and often works much better than gradient descent.

Adam

  • Adapt learning rate by using moments of gradients
  • First and Second Order Moments:
  • $$ \begin{eqnarray} \mathbf{m}_t &=& \beta_1 \mathbf{m}_{t-1} + (1-\beta_1)\mathbf{g}_t \\ \mathbf{v}_t &=& \beta_2 \mathbf{v}_{t-1} + (1-\beta_2)\mathbf{g}^2_t \end{eqnarray} $$
  • Bias Correction:
  • $$ \begin{eqnarray} \mathbf{\hat{m}}_t = \frac{\mathbf{m}_t}{1-\beta_1} \nonumber \\ \mathbf{\hat{v}}_t = \frac{\mathbf{v}_t}{1-\beta_2} \nonumber \end{eqnarray} $$
  • Adam Update:
  • $$ \begin{equation} \mathbf{\theta}_t = \mathbf{\theta}_{t-1} - \frac{\alpha}{\sqrt{\mathbf{\hat{v}}_t+\epsilon}}\mathbf{\hat{m}}_t \end{equation} $$

Adam Continued...

  • Very commonly used, hundreds of thousands of papers.
  • Adam with $\beta_1 = 0.9$, $\beta_2 = 0.999$, and learning_rate = 1e-3, 5e-4, 1e-4 is a great starting point for many models!

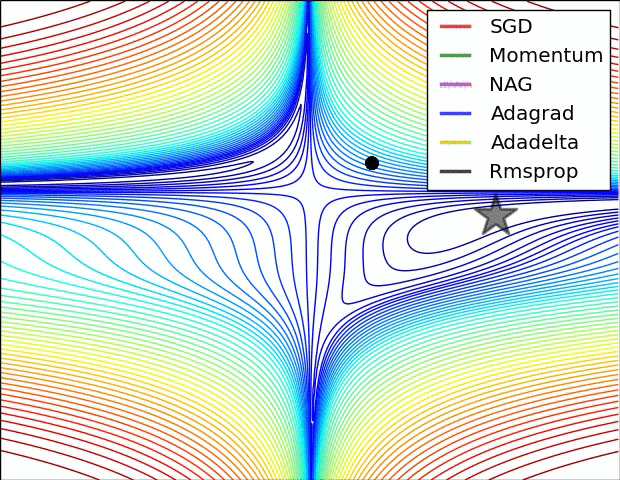

Optimization Algorithm Comparison

Algorithm Tracks 1st moments (momentum) Tracks 2nd moments (adaptive LR) Leaky 2nd moments Bias correction for momentum updates
SGD
SGD+Momentum
Nesterov
AdaGrad
RMSProp
Adam

$L_2$ Regularization vs Weight Decay

Optimization Algorithm
  • $\mathcal{L}(\mathbf{w})=\mathcal{L}_{data}(\mathbf{w})+\mathcal{L}_{reg}(\mathbf{w})$
  • $\mathbf{g}_t = \nabla\mathbf{L}(\mathbf{w}_t)$
  • $\mathbf{s}_t = optimizer(\mathbf{g}_t)$
  • $\mathbf{w}_{t+1}=\mathbf{w}_t - \alpha\mathbf{s}_t$
    • $L_2$ regularization and weight decay are equivalent for SGD and SGD+Momentum.
    • But they are not the same for adaptive methods (AdaGrad, RMSprop, Adam etc.)
  • Loshchilov and Hutter, “Decoupled Weight Decay Regularization”, ICLR 2019

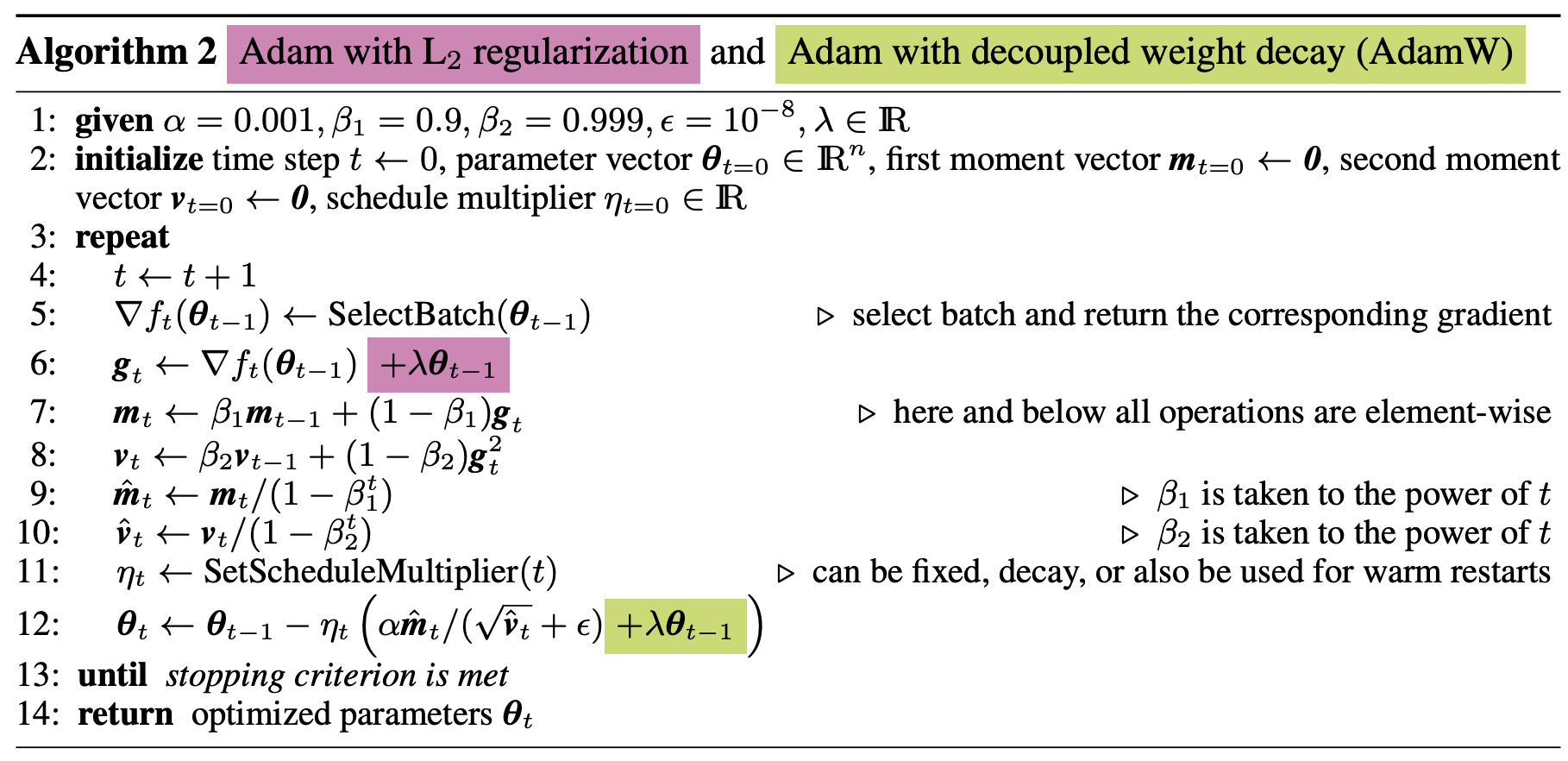

$L_2$ Regularization vs Weight Decay

  • AdamW decouples weight decay.
    • It should be your default optimizer

Believe when you see it...

Second Order Gradient Descent

  • Second Order Taylor Approximation:
  • $$ \begin{eqnarray} f(\mathbf{x}) &=& f(\mathbf{x}_0) + (\mathbf{x}-\mathbf{x}_0)^T\nabla_{\mathbf{x}}f(\mathbf{x}_0) + \frac{1}{2}(\mathbf{x}-\mathbf{x}_0)^T\nabla^2_{\mathbf{x}}f(\mathbf{x}_0)(\mathbf{x}-\mathbf{x}_0) \nonumber \end{eqnarray} $$
  • Newton Update:
  • $$ \begin{eqnarray} \nabla_{\mathbf{x}}f(\mathbf{x}) &=& 0 \nonumber \\ \nabla_{\mathbf{x}}f(\mathbf{x}_0) + \nabla^2_{\mathbf{x}}f(\mathbf{x}_0)(\mathbf{x}-\mathbf{x}_0) &=& 0 \nonumber \\ \mathbf{x} &=& \mathbf{x}_0 - \left[\nabla^2_{\mathbf{x}}f(\mathbf{x}_0)\right]^{-1}\nabla_{\mathbf{x}}f(\mathbf{x}_0) \nonumber \end{eqnarray} $$
    • Why is this impractical?
      • Hessian has $\mathcal{O}(n^2)$ elements. Inverting takes $\mathcal{O}(n^3)$

Second Order Optimization

$\mathbf{x} = \mathbf{x}_0 - \left[\nabla^2_{\mathbf{x}}f(\mathbf{x}_0)\right]^{-1}\nabla_{\mathbf{x}}f(\mathbf{x}_0)$
  • Many approximations (quasi-newton methods) have been proposed in the literature (BFGS, L-BFGS etc.)
    • BFGS: instead of inverting the Hessian $\mathcal{O}(n^3)$, approximate inverse Hessian with rank 1 updates over time ($\mathcal{O}(n^2)$ each)
    • L-BFGS (limited memory BFGS): Does not form/store the full inverse Hessian
  • Usually works very well in full batch, deterministic mode i.e. if you have a single, deterministic $f(x)$ then L-BFGS will probably work very nicely
  • Does not transfer very well to mini-batch setting. Gives bad results. Adapting second-order methods to large-scale, stochastic setting is an active area of research.

In Practice...

    • Adam/AdamW is a good default choice.
    • In many cases SGD+Momentum can outperform Adam but may require more tuning.
    • If you can afford to do full batch updates, then try out L-BFGS (remember to turn-off all sources of noise).

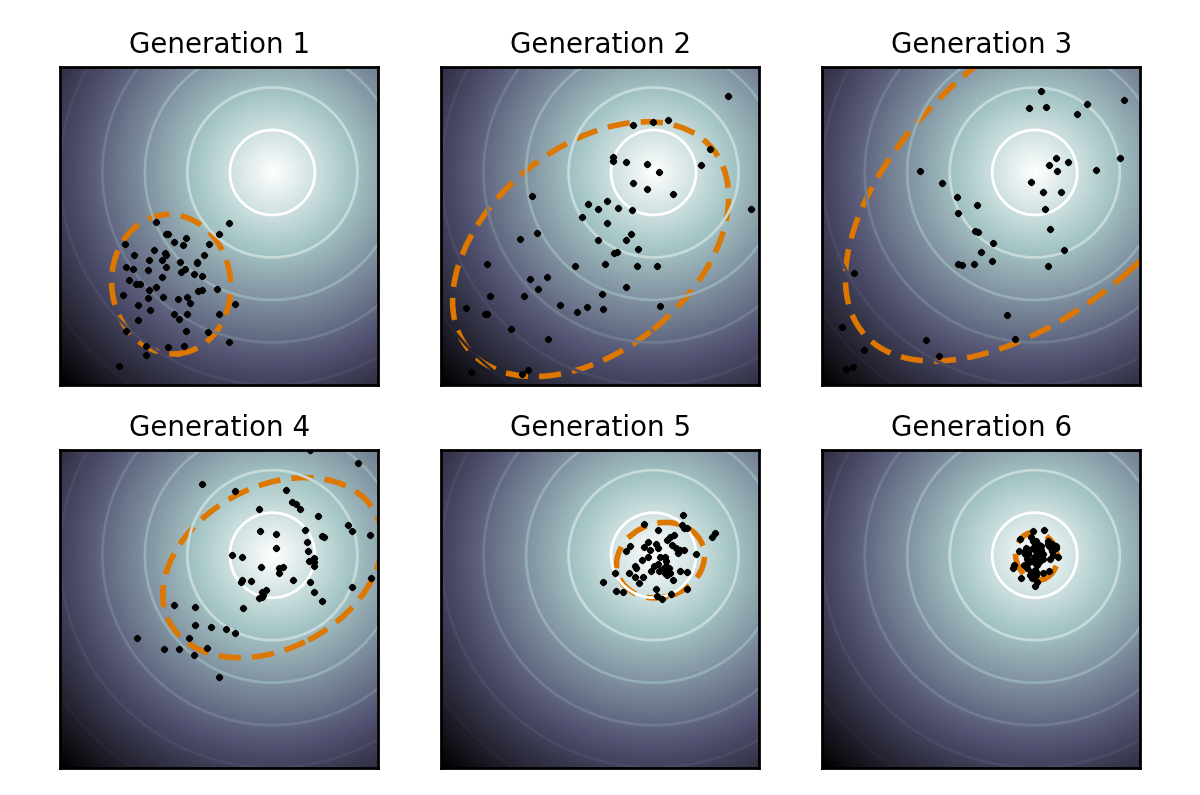

Covariance Matrix Adaptation Evolution Strategy (CMA-ES)

  • Gradient Free Optimization
  • Until convergence:
    • Sample from Gaussian distribution around current location.
    • Evaluate and sort function values
    • Update mean and covariance of Gaussian distribution
